Highly Conductive and Elastic Nanomembrane for Skin Electronics

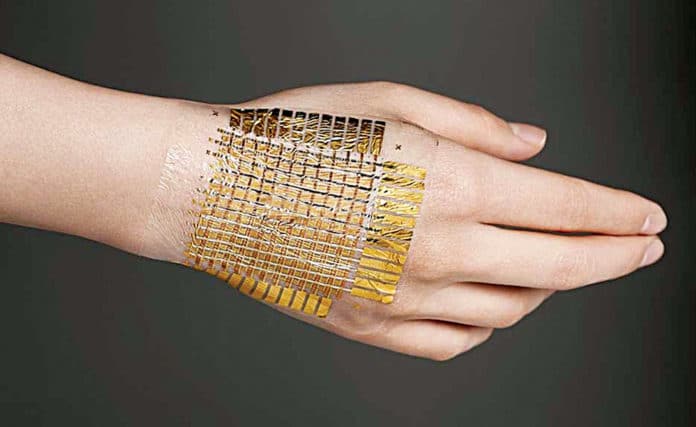

Skin electronic for wearable devices

A float assembly method enables the fabrication of highly conductive, stretchable, and ultrathin nanomembranes.

The rapid advancement of materials technology, science and engineering can be found in particular in conductive material. The latest application require a material that is flexible and ultrathin, so that it can be used in medical needs, such as in skin. Skin electronics require stretchable conductors that satisfy metal-like conductivity, high stretchability, ultrathin thickness, and ease of patternability, but it is challenging to achieve these characteristics at the same time. Although it is difficult to fabricate, scientist from the Institute of Basic Science, South Kore has developed this material, which can be used in a wide range of application such as health monitoring, health diagnosis, virtual reality, and human-machine interface.

As it is expected, creating such devices requires components that are soft and stretchable to be mechanically compatible with the human skin. One of the vital components of skin electronics is an intrinsically stretchable conductor that transmits electrical signals between devices. For reliable operation and high-quality performance, a stretchable conductor which features ultrathin thickness, metal-like conductivity, high stretchability, and ease of patternability is required. Despite extensive research, it was not yet possible to develop a material that possesses all of these properties simultaneously, due to the fact that they often have trade-offs between one another.

Led by professor HYEON Taeghwan and KIM Dae-Hyeong, researchers at the Center for Nanoparticle Research within the Institute of Basic Science (IBS) in Seoul, South Kore unveiled a new method to fabricate a composite material in a form of nanomembrane, which comes with all of the above-mentioned properties. The new composite material consists of metal nanowires that are tightly packed in a monolayer within ultrathin rubber film.

This novel material was made using a process that the team developed called a "float assembly method". The float assembly takes advantage of the Marangoni effect, which occurs in two liquid phases with different surface tensions. When there is a gradient in surface tension, a Marangoni flow is generated away from the region with lower surface tension towards the region with higher surface tension. This means that dropping a liquid with lower surface tension on the water surface lowers the surface tension locally, and the resulting Marangoni flow causes the dropped liquid to spread thinly across the surface of the water.

The nanomembrane is created using a float assembly method which consists of a three-step process. The first step involves dropping a composite solution, which is a mixture of metal nanowires, rubber dissolved in toluene, and ethanol, on the surface of the water. The toluene-rubber phase remains above the water due to its hydrophobic property, while the nanowires end up on the surface between the water and toluene phases. The ethanol within the solution mixes with the water to lower the local surface tension, which generates Marangoni flow that propagates outward and prevent the aggregation of the nanowires. This assembles the nanomaterial into a monolayer at the interface between water and a very thin rubber/ solvent film. In the second step, the surfactant is dropped to generate a second wave of Marangoni flow which tightly compacts the nanowires. Finally, in the third step, the toluene is evaporated and a nanomembrane with a unique structure which a highly compacted monolayer of nanowires is partially embedded in an ultrathin rubber film is obtained.

Its unique structure allows efficient strain distribution in ultrathin rubber film, leading to excellent physical properties, such as stretchability of over 1,000% and a thickness of only 250 nm. The structure also allows cold welding and bi-layer stacking of the nanomembrane onto each other, which leads to a metal-like conductivity over 100,000 S/cm. The Implications of this study may go well beyond the development of skin electronics. While this study showcased a composite material consisting of silver nanowires within styrene-ethylene-butylene-styrene (SEBS) rubber, it is also possible to use the float assembly method on various nanomaterials such as magnetic nanomaterials and semiconducting nanomaterials, as well as other types of elastomers such as TPU and SIS. Therefore, it is expected that the float assembly can open new research fields involving various types of nanomembrane with different functions.

Story Source:

Materials provided by Institute of Basic Science and Science Daily Photograph is credited from Electronics For U.

Journal Reference:

Dongjun Jung, Chaehong Lim, Hyung Joon Shim, Yeongjun Kim, Chansul Park, Jaebong Jung, Sang Ihn Han, Sung-Hyuk Sunwoo, Kyoung Won Cho, Gi Doo Cha, Dong Chan Kim, Ja Hoon Koo, Ji Hoon Kim, Taeghwan Hyeon, Dae-Hyeong Kim. Highly conductive and elastic nanomembrane for skin electronics. Science, 2021; 373 (6558): 1022 DOI: 10.1126/science.abh4357
